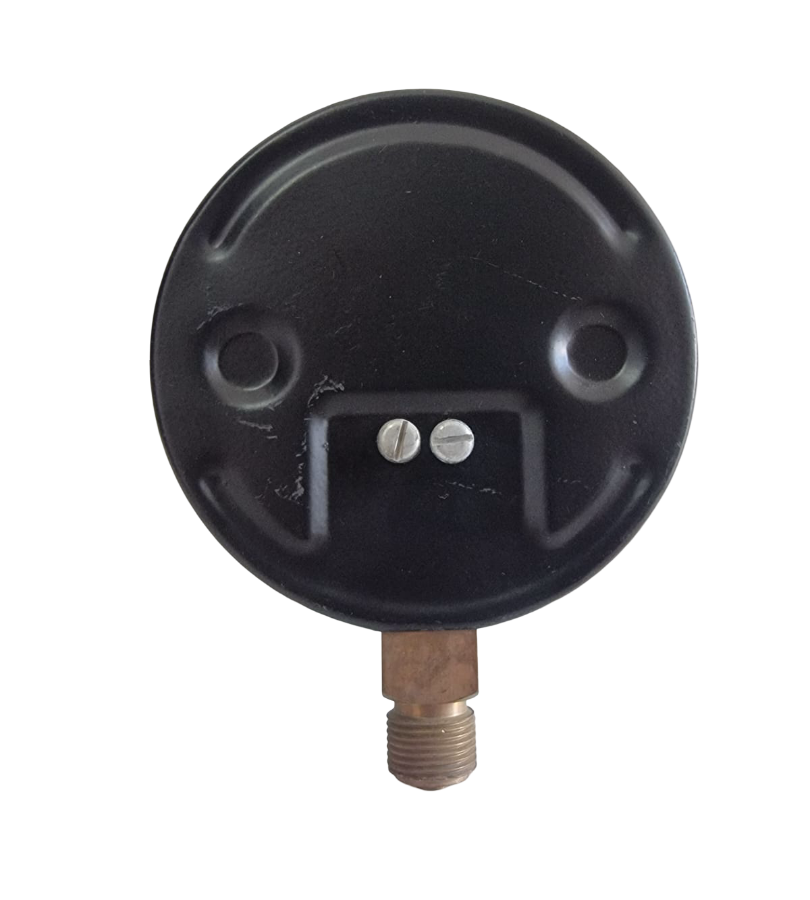

MS PRESSURE GAUGE 10BAR/150PSI BOTTOM CONNECTION DIAL(2.5” , 4” & 6”)

Durable mild steel (MS) pressure gauge for medium-pressure measurement in various industrial, hydraulic, and water systems. Designed for reliable performance and clear readings across multiple dial sizes.

Specifications:

• Pressure Range: 0–10 Bar / 0–150 PSI

• Dial Sizes: 2.5” (63 mm), 4” (100 mm), and 6” (150 mm)

• Connection: Bottom connection – 1/4” BSP (2.5”), 3/8” BSP (4”), 1/2” BSP (6”)

• Type: Dry type or Glycerine filled (optional)

• Material: Mild steel case with brass internals

• Scale: Dual scale (Bar / PSI)

• Operating Temperature: -20°C to +60°C

Features:

• Robust mild steel housing for long service life

• Accurate and easy-to-read dial

• Optional glycerine filling for vibration resistance

• Cost-effective and versatile design

• Easy installation and maintenance

Applications:
Ideal for pumps, air compressors, boilers, filters, and water treatment systems.
