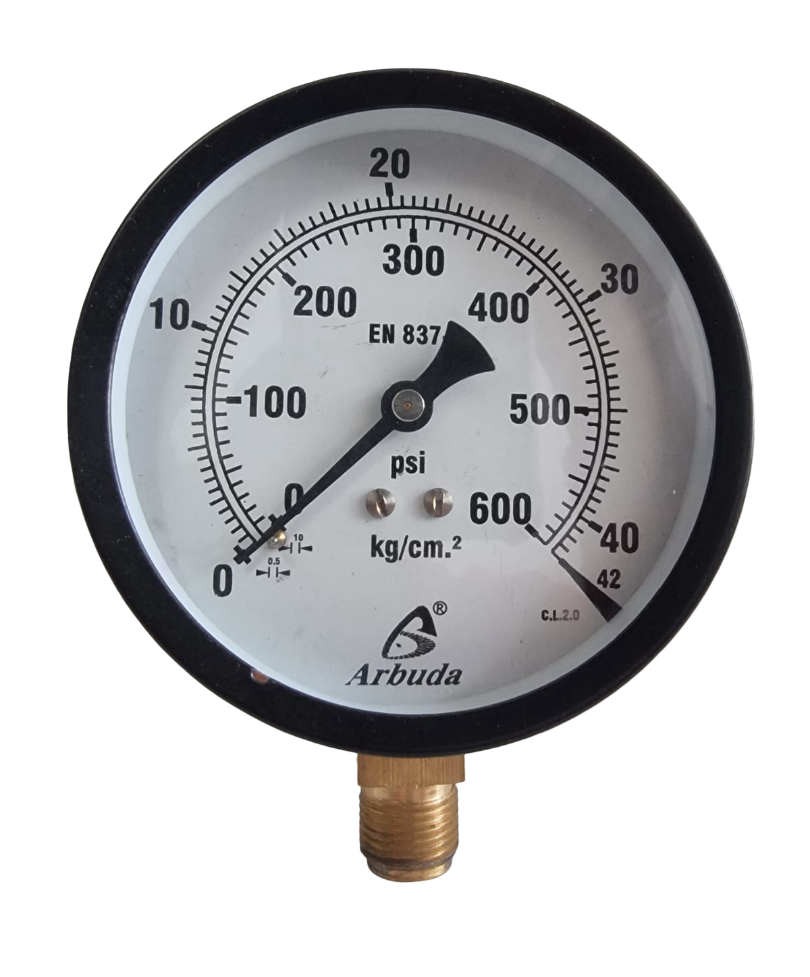

MS PRESSURE GAUGE 42BAR /600PSI BOTTOM CONNECTION DIAL (2.5” ,4”)

mild steel (MS) pressure gauge designed for high-pressure measurement in industrial, hydraulic, and water system applications. Built for strength, accuracy, and dependable performance in demanding environments.

Specifications:

• Pressure Range: 0–42 Bar / 0–600 PSI

• Dial Sizes: 2.5” (63 mm) and 4” (100 mm)

• Connection: Bottom connection – 1/4” BSP (2.5”) and 3/8” BSP (4”)

• Type: Dry type (MS)

• Material: Mild steel case with brass internals

• Scale: Dual scale (Bar / PSI)

• Operating Temperature: -20°C to +60°C

Features:

• Strong mild steel body for durability under high pressure

• Clear, easy-to-read dual scale for precise readings

• Long service life with minimal maintenance

• Cost-effective and versatile for various applications

Applications:
Ideal for pumps, compressors, boilers, filters, hydraulic systems, and industrial machinery.
