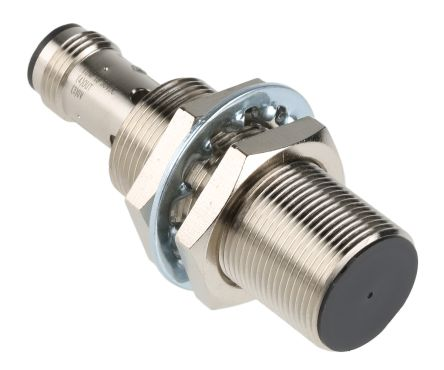

PLUG TYPE PROXIMITY SWITCH (INDUCTIVE) – 18MM, NPN NO (OMRON TYPE)

This plug-type inductive proximity switch is used for non-contact detection of metallic objects in industrial automation and machinery. It features an M18 threaded metal housing and a plug-in connector interface for quick installation and easy replacement. The sensor operates with an NPN Normally Open (NO) output for direct connection to PLCs and control relays.

Key Features:

• Inductive Proximity Sensor (metal detection without physical contact)

• Housing Diameter: 18mm (M18 Standard)

• Connection Type: Plug Type (Omron Compatible –4-Pin depending on model)

• Output Type: NPN, Normally Open (NO)

• Stable switching performance with long service life

• Resistant to oil, dust, vibration, and industrial environments

Typical Specifications (Model Dependent):

• Operating Voltage: 10–30V DC

• Load Current: Up to 200–300mA

• Sensing Distance: Approx. 5–8mm

• Protection: Reverse Polarity & Short-Circuit Protection

Applications:

• CNC, Lathe & Industrial Machinery

• Packaging & Assembly Automation

• Conveyor Position Feedback Systems

• Machine Tool Metal Counting & Presence Sensing

• Robotics & Motion Control
