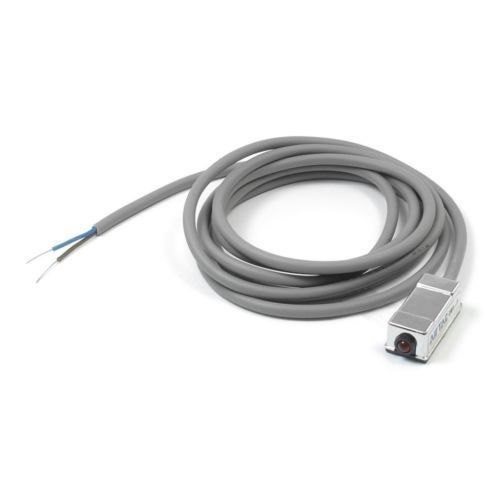

REED SWITCH – BH-DZ Model: CS1-F

Main Features:

• For use on pneumatic cylinders

• Non-contact sensing – no mechanical wear

• LED indicator shows when the switch is ON

• Easy to install on the cylinder surface

• Compact and reliable

Basic Specifications:

• Voltage: 5–240V AC/DC

• Max current: 100 mA

• Power rating: 10 W

• Cable length: Around 2 meters

• Output type: Normally Open (NO)

• Protection: IP67 (dust and water resistant)

Applications:

• Detecting piston end position in pneumatic cylinders

• Feedback to PLC or control systems

• Used in automation, packaging, and assembly machines

• For position sensing and safety control
