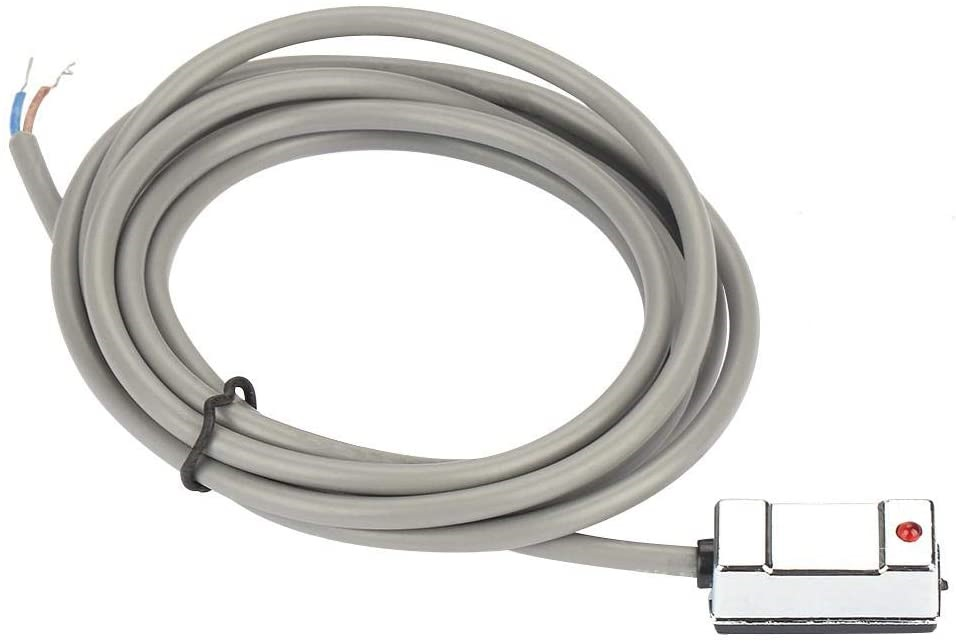

REED SWITCH – BH-DZ Model: CS1-U

Main Features:

• Works with most pneumatic cylinders

• Non-contact operation – no mechanical wear

• LED indicator for signal status

• Dustproof and water-resistant (IP67)

• Reliable and long service life

Basic Specifications:

• Operating voltage: 5 to 240V AC/DC

• Max current: 100 mA

• Power capacity: 10 W

• Switching frequency: up to 200 Hz

• Operating temperature: –10°C to +70°C

• Voltage drop (ON): around 2.5V at 100 mA

• Shock resistance: about 30G

• Cable length: approximately 2 meters

Applications:

• Detecting piston end or mid positions in pneumatic cylinders

• Feedback signals to PLCs or control systems

• Used in automation, packaging, and assembly machines

• Ideal for safety interlocks and motion control tasks
