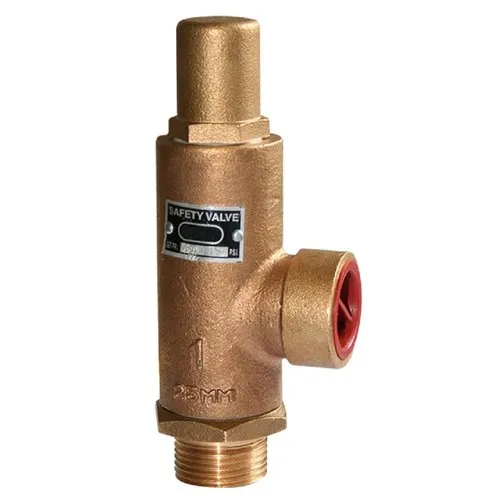

SAFETY VALVE ANGLE TYPE SCRD ENDS

This is a compact spring‑loaded safety/relief valve made by UTAM, designed for installation in piping systems to protect against over‑pressure. It features an angle configuration (inlet and outlet form approximately a 90° angle) and screwed threaded ends for easy connection.

 Key Features

• Angle‑type design: Inlet and outlet form a bend (~90°), which helps in tight or compact piping layouts.
• Screwed ends: Threaded connections (e.g., BSP/NPT) — easy to install in standard threaded piping.
• Spring‑loaded operation: The valve remains closed under normal pressure, and opens automatically when pressure exceeds a preset set value, venting the excess fluid/gas.
• Re‑closing ability: After pressure drops back below the set threshold, the valve resets and stops the discharge.
• Reliable construction (UTAM brand): Made with robust materials (body, spring, disc/seat) and designed for industrial applications such as boilers, vessels, pipelines.
• Standard specification features:
  • Set‑pressure range from roughly 0.5 bar up to about 10 bar for their typical screwed models.
  • Max operating temperature around 200‑225 °C (depending on version) and capable of body test pressures (e.g., 24 bar) in their datasheet.
  • Sizes in the UTAM offering: 15mm (½″ BSP), 20mm (¾″), 25mm (1″), 32mm (1¼″), 40mm (1½″), 50mm (2″) for their standard safety valve line.

Typical Sizes (Threaded / Screwed Version)

• ½″ (15 mm)
• ¾″ (20 mm)
• 1″ (25 mm)
• 1¼″ (32 mm)
• 1½″ (40 mm)
• 2″ (50 mm)

  Typical Applications

• Boilers and pressure vessels
• Piping lines carrying steam, air, water, gas
• Process industries including chemical, pharmaceutical, food
• Protection of pumps, compressors, and other pressurized systems
