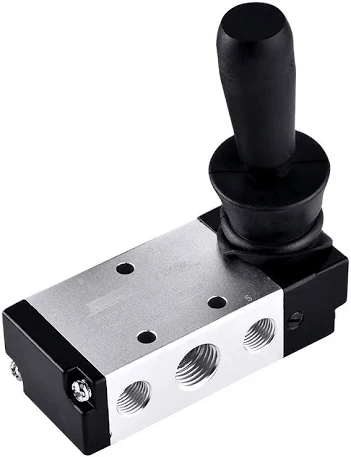

TECHNO PNEUMATIC VALVE – MODEL: 4H210 – 08
| Parameter | Value / Typical Range |
|---|---|
| Valve Type | 5-port, 2-position (5/2) manual lever valve |
| Operation | Hand lever (manual) actuation |
| Port Size | Inlet (P) = 1/4″ (PT / NPT / G types depending on configuration) (BAOMAIN) |
| Outlet Ports (A, B) | 1/4″ (BAOMAIN) |
| Exhaust Ports (R, S) | 1/8″ (eBay) |
| Working Pressure | ~ 25 to 116 psi (approximately 0.17 to 0.8 MPa) (Trex Houston) |
| Operating Temperature Range | Approx ambient / air service (e.g., 0-60 °C typical) (BAOMAIN) |
| Material | Aluminum alloy body (lightweight) (pneucons.com) |
| Seal / Internal Construction | Slide column structure, minimal friction, good tightness (Trimantec) |
| Other Features | Manual actuation, easy installation and removal, suitable for use in pneumatic systems with moderate pressures, relatively compact form (Trimantec) |
